TTES / TTAS Series Wireless Rotary Torque Transducer (Square Drive)

(Also known as Wireless Rotary Torque Sensor – Square Drive Type / Non-Contact Torque Transmitter for Impact & Pulse Tools)

A TTES / TTAS Series Wireless Rotary Torque Transducer (Square Drive) is a non-contact, high-speed torque sensor designed to measure and transmit real-time torque and angle data from rotating power tools that use square-drive sockets (such as impact wrenches, pulse tools, or torque multipliers). It replaces traditional wired or slip-ring sensors with a wireless data transmission system, enabling accurate torque measurement under dynamic, high-vibration, and high-RPM conditions — ideal for industrial bolting, assembly, and quality verification applications. This transducer type is designed for use in pneumatic, hydraulic, or electric torque tools.

Compare the series

~~6 SERIES · 5–2000 N·m NOMINAL~~

Transducer series compared by output type, angle measurement, torque range and model count
Series	Output	Angle	Torque range	Models	Designed for
TTES	Square drive 3/8"–1-1/2"	—	2 – 2400	11	Dynamic bolting
TTAS	Square drive 3/8"–1-1/2"	0–360° / 0.5°	2 – 3000	11	Static control & measurement
TTEB	Bit holder, Hex 6.35 mm	—	0.5 – 20	3	Screwdrivers, small fasteners
TTEH	Impact socket, Hex 17–32	—	18 – 800	10	Heavy impact wrenches
TTAH	Impact socket, Hex 17–46	0–360° / 0.5°	18 – 750	8	High torque with angle control

Measured torque range in N·m, equal to 10–100% of each model's nominal capacity. Nominal capacities run 5 to 2000 N·m; 3000 N·m and above is custom made.

Common specification

~~ALL SERIES~~

Measured range: 10% – 100% T_nom
Torque resolution: 0.1% T_nom
Accuracy CW: ±1% RF · ±0.5% BT
Accuracy CCW: ±2% RF · ±1% BT
Static accuracy: ±1% FSD RF · ±0.5% FSD BT
Zero balance: <±0.5% FSD/°C
Maximum torque: 100% T_nom
Wireless: RF 2.4 GHz (60 ch) or BT
Wireless range: RF 20 m · BT 15 m

Battery: DC 3.7 V / 650 mAh
Battery life: RF 8 h · BT 12 h
Charging: USB-C 5 V/1 A · 2 h
Operating temp.: 0 °C – 50 °C
Storage temp.: -10 °C – 60 °C
Humidity: 10 – 75% non-condensing
Power switch: Magnetic
Warranty: 12 months, or 200,000 dynamic / 500,000 static cycles
Compliance: CE · RoHS · REACH

In this category

~~2 PRODUCTS~~

TTAS

TTAS Series Wireless Rotary Torque Transducer (Angle Detection)

The TTAS Series Wireless Rotary Torque Transducer with Angle Detection is an innovative tool that simultaneously provides highly accurate torque and angle…

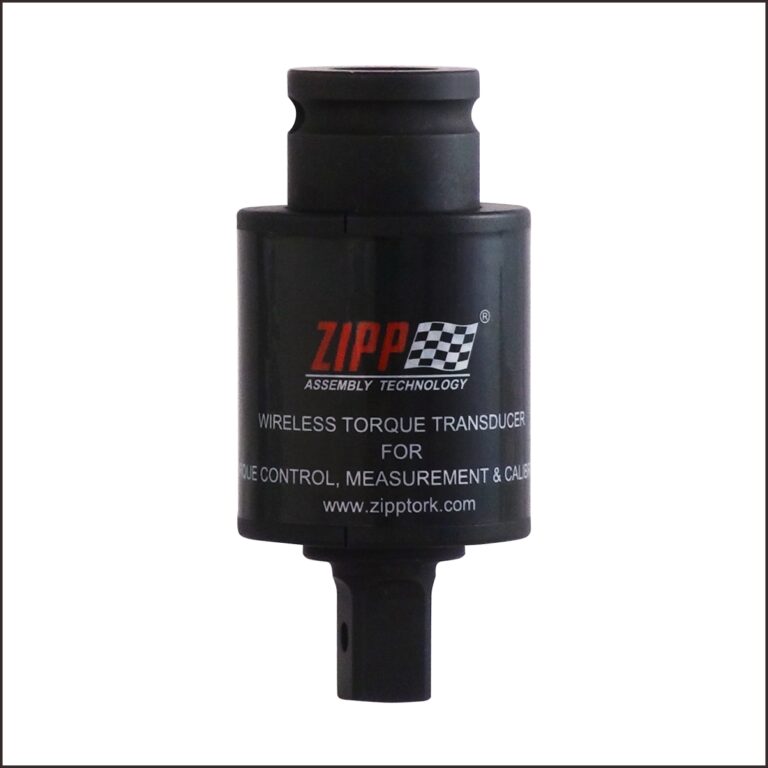

TTES

TTES Series Wireless Rotary Torque Transducer

The TTES Series Shock & Impact-Proof Wireless Rotary Torque Transducer is a cutting-edge tool that delivers accurate, reliable torque measurements in demanding…
