TTEB Series Wireless Rotary Torque Transducer (Screw Bits Holder)
The TTEB Series is a wireless rotary torque transducer designed for use with tools that drive screw bits (e.g., screwdrivers, electric or pneumatic drive tools) rather than square-drive sockets.
It features a bit-holder output interface, meaning you can mount standard screw bits directly and measure torque through the tool’s rotational motion.
The device allows real-time torque measurement and wireless data transmission, turning conventional screw-driving tools into smart, data-capable torque systems.
Key Features & Benefits
| Feature | Description | Benefit |
|---|---|---|
| Bit-Holder Interface | Accepts standard screw bits in place of a drive socket | Enables torque measurement on screwdriving operations |
| Wireless Data Transmission | Sends torque (and possibly angle) data over RF/2.4 GHz | Eliminates the need for cables, enables mobility, and flexible integration |
| Precision & Calibration | High accuracy across the torque range | Reliable torque traceability and control |
| Shock / Vibration Resistance | Built to withstand dynamic tool environments | Suitable for industrial use with impact, vibration, and noise |
| Compact Design | Small form factor matching hand tools | Easy integration without significantly changing the tool ergonomics |
Typical Use Case
You attach the TTEB transducer between the screw-driving tool motor or gearbox and the screw bit.
As the tool rotates the bit and applies torque to fasteners, the transducer measures the torque on the rotating shaft.
The transducer sends this data wirelessly to a receiver or torque controller.
The controller can then display, log, or act on the torque data (e.g., shut off when target torque is reached, log torque curves, or feed data to MES systems).
The system supports Industry 4.0 / IIoT integration and traceable torque control workflows.

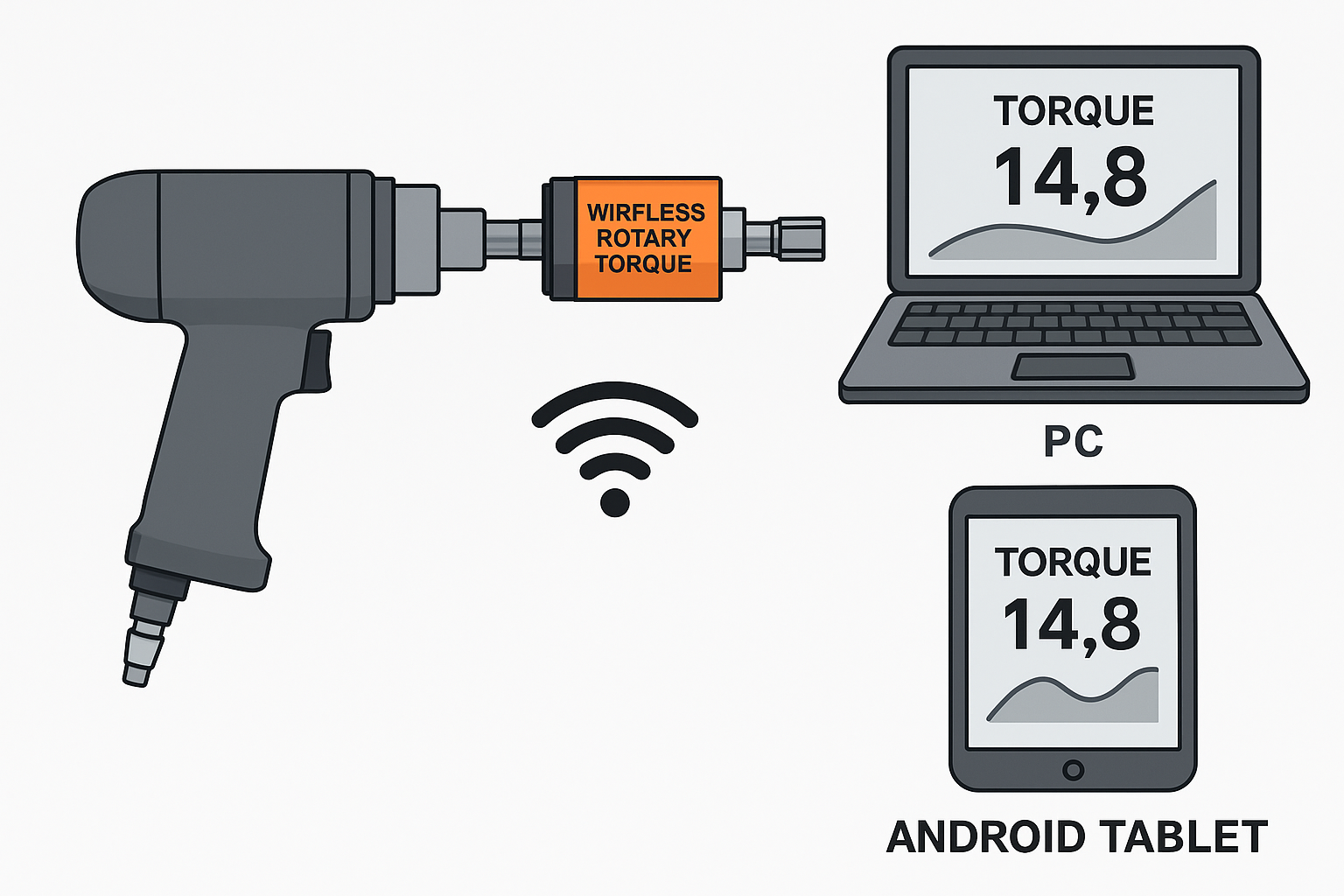

Connecting TTEB Wireless Rotary Torque Transducer to PC / Android Tablet
Wireless Communication Interface
The TTEB Series transmits data wirelessly using a 2.4 GHz RF or Bluetooth Low Energy (BLE) signal.
Depending on your model configuration:
| Transmitter Type | Typical Receiver | PC / Tablet Connectivity |
|---|---|---|
| RF (proprietary 2.4 GHz) | ZIPPTORK USB wireless receiver dongle | Plug into the PC USB port for data reception |
| Bluetooth BLE version | Built-in BLE receiver (PC / Android tablet) | Pair directly via Bluetooth connection |
Software Interface
Once connected, torque data can be monitored and recorded using one of the following:
ZIPPTORK PC Software Suite:
Displays real-time torque, angle, and cycle count graphs.
Exports torque data to CSV or integrates with MES via API.Android App (ZIPPTORK TorqueView):
This system allows live monitoring, data logging, and graph display.
Ideal for portable use or mobile QA inspection.Third-Party Software Integration (Optional):
Data output in RS-485 / USB / Bluetooth JSON format for compatibility with external data systems.
Data Functions
When connected directly to a PC or tablet, the TTEB transducer provides:
Real-time torque and angle readings (Nm, kgf·cm, in-lb).
Torque-time and torque-angle graphs.
Peak hold, average, and pass/fail analysis.
Cycle count and traceable record storage.
Use Case Examples
QA inspection stations: Portable verification without needing a full controller.
Laboratory or R&D torque analysis: USB connection to PC for data logging.
Field service or on-site testing: Use a Bluetooth connection to a tablet for quick torque checks.
Integration with MES / IIoT platforms: Through PC software or Bluetooth gateway.
TTEB Series Wireless Rotary Torque Transducer (Screw Bits Holder)
TTEB Series Wireless Torque Transducer (Bit Holder output) - Designed for torque tightening process monitoring with fully-featured data collecting and data analysis software
