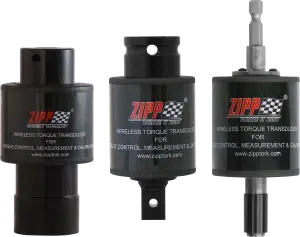

TTEB Wireless Torque Transducer

TTEB Wireless Torque Transducer

The revolutionary wireless torque transducer from ZIPPTORK is the perfect solution for accurate, reliable, and efficient torque measurement. Designed with state-of-the-art wireless technology, this transducer offers a range of benefits that make it the ideal choice for a wide range of applications.

With robust construction and high-precision measurements, ZIPPTORK’s wireless torque transducer is perfect for industrial environments where accurate torque measurement is crucial. The wireless design eliminates bulky cables and allows easy installation and operation. The transducer’s advanced electronics ensure accurate, stable, and repeatable torque measurement, while its compact size makes it easy to fit into tight spaces.

The transducer’s wireless connectivity enables real-time data acquisition and remote monitoring, providing real-time feedback and enhancing productivity. The transducer is compatible with various devices, including smartphones and tablets, and can be easily integrated into existing systems.

With its high accuracy, reliability, and durability, ZIPPTORK’s wireless torque transducer is the ultimate tool for precise torque measurement. Whether you’re in the automotive, aerospace, energy, or any other industry, this transducer is the perfect choice for efficient and reliable torque measurement.

• The only wireless Torque Transducer applicable to impact or oil pulse torque tool for dynamic bolting.
• Designed with unique patent pending anti-vibration mechanism for dynamic bolting torque control under violent impacts.
• Standard Packaging: Torque Transducer, Charging Cable & Magnet Switch.
• Optional Accessories:
  1. Dongle for Android Pad or Window PC/Laptop.
  2. Transducer Protection Cover.

Charger	Type-C 5V/1A
IO(1)	USB Type-C *1
IO(2) Wireless	RF 2.4G up-to 20M
Zero Balance	<±0.5% FSD/°C
Static Accuracy	±1% FSD
Temperature	-10°C~60°C
Humidity	10~75% Non-condensing
Charging time	5% to 100%, 2 hours
Optional Dongle: P/N: DG-CP for Android P/N: DG-WIN for Window	Optional Transducer Protection Cover: P/N: TPC-100 for 20/50/100Nm P/N: TPC-250 for 180/250Nm P/N: TPC-500 for 500/750Nm P/N: TPC-2000 for 1000/1500/2000Nm

Software and Functions

• Applicable to:
  Oil Pulse Wrench, Impact Wrench, Geared Wrench, Torque Wrench, Clutch Type, Torque Tool & Click Wrench.
• Measurement: Torque, Angular Movement & Pulse Count.
• RF Working Frequency: 60 channels available to be paired with TCA/TCB.
• Functions Check: Automatic check the status of power rate, signal quality, torque & angle, etc. when turned on.
• Switch: Use magnet to turn on.
• LED Light:
  Blue/Orange twin color:
  Orange last long~Low Power, Blue last long~RF in communication, Blue twinkling~pairing with Controller, Orange
  Twinkling~Abnormal.
  Red/Green twin color: Red~In Charging, Green~Full Charge.

Minimum system requirements:

Operating system	Windows 10 or above	Android 7.0 or above
Minimum CPU	Core i3	Quad core
Minimum system memory (RAM)	4G	3G
Minimum free storage space:	32GB	32GB

Warranty period:

• Torque Controller – 12 months from purchase date.
  Manufacturer will repair or replace, any defects due to faulty materials or workmanship. This Warranty does not cover part failure due to broken / missing seal label, misuse, modification, negligence, abuse or normal wear and tear.
• Transducer –
  TTE(H) series: 12 months from purchase date or 200,000 cycles.
  TTA(H) & TTEB series: 12 months from purchase date or 500,000 cycles.
  Battery: 3 months from purchase date.
  Signal acquisition board: 12 months from purchase date.
  Manufacturer will repair or replace, any defects due to faulty materials or workmanship. This Warranty does not cover part failure due to over torque, using TTA(H) series on impact tools or cordless tools, broken /missing seal label, misuse,
  modification, negligence, abuse or normal wear and tear.
• Dongle – 12 months from purchase date.

This series of Transducer can be custom made with specific size of hexagonal opening for correspondent size of bolt or nut.

Item
Tnom	50~2000Nm	5~20Nm
Power	DC 3.7V / 650 mAh	DC 3.7V / 650 mAh
Measured Range	10% Tnom~100% Tnom	10% Tnom~100% Tnom
Torque Resolution (Nm)	0.1% Tnom	0.1% Tnom
Accuracy (CW)	±1%	±1%
Accuracy (CCW)	±2%	±2%
Static Measured Angle Range	0°~360°	0°~360°
Angle Resolution (Degree)	0.5°	0.5°
Maximum Torque (Nm)	100% Tnom	100% Tnom
Wireless communication	RF 2.4GHz
Cable	USB-Type C
Charger	USB ( 5V/1A )
Operation Temperature (°C)	0°C~50°C
Storage Temperature (°C)	-10°C~60°C
